Overview |
 |
|
Ultra Beads Mill is a perfectly airtight, horizontal beads mill and it is the best optimum for milling.
The grid-ring, which was developed and is mounted by Nanointech’s technology, minimizes the pressure increase in the mill so it is very suitable for milling. It is being currently researched by use of different materials for the disk and the vessel, and it can be applied to every field. It is an upgrade of the existing mills.
|
|
|
|
|
|
|
Feature |
|
|
＊Distinguished milling property : The length of the vessel is longer by 2.5~3 times than its inner diameter so short-pass is suppressed to the maximum and milling efficiency is increased.
* Double mechanical seal: A special mechanical seal, which was developed through Nanointech’s long experience, is used so it is convenient to perform after sales services, maintenance, and repair works. The installation of a separate cooling system is effective for cooling the inside of the seal.
* Bead separation: The grid-ring, which was developed by Nanointech (Utility model no. 0200291), is used so beads and samples can be separated easily and simply, which lowers the pressure of the inside and further, is advantageous for milling. Especially, it is greatly effective when less than 0.8mm-beads are used.
* Vessel cooling: The vessel, which is made through Nanointech’s long experience, is effective for lowering the temperature of materials.
* Minimization of impurity-mixing: The sections that are touched by the material in the grinding tank, such as the grinding vessel and the disk, are ceramic- or urethane-coated so impurity mixing is minimized.
* Various mechanical protection and safety devices:
- Pressure and temperature of a machine vessel
- Through the safety device for the pressure, the temperature, and the level of the mechanical seal, the safety in unmanned operation is obtained.
- A data-saving and operation automation system (option) is used so it is possible to accurately realize data-saving and operation. It can make a remarkable contribution to research and development.
|
|
|
|
Use / Composition |
|
|
Electronic ceramics (MLCC, Dielectric substance, Piezoelectrics), Inks and paints, Dyes, Colors, Paper, General coating ceramics, Glass for PDP, Agricultural chemicals, Medicines, Cosmetics, Foods
[Beads mill disk]
|
|
|
|
Basic Spec. |
|
|

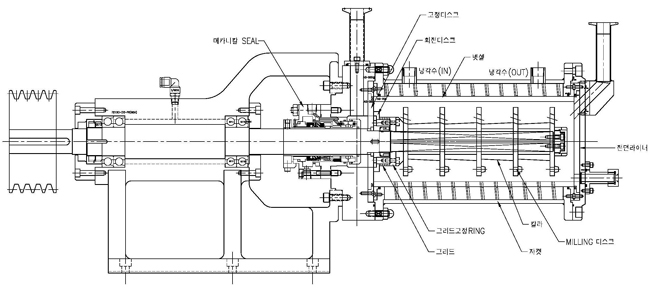

Basic drawing of a beads mill |
|
|
Model |
UBM-1 |
UBM-3 |
UBM-5 |
UBM-11 |
UBM-20 |
UBM-30 |
Capacity(ℓ) |
1 |
3 |
5 |
10.9 |
22.8 |
27 |
Length L (mm) |
580 |
815 |
815 |
860 |
970 |
1020 |
Width W (mm) |
715 |
1200 |
1200 |
1360 |
1510 |
1538 |
Height H (mm) |
1250 |
1600 |
1600 |
1800 |
1800 |
1848 |
Motor (kw) |
3.7 |
7.5 |
11 |
22 |
37 |
30 |
Weight (kg) |
400 |
900 |
1000 |
1500 |
2000 |
2000 |
|
|
|
The above capacities are available through ceramics, and any other capacities than the above are available too. |
|
|
|
|
|
|
